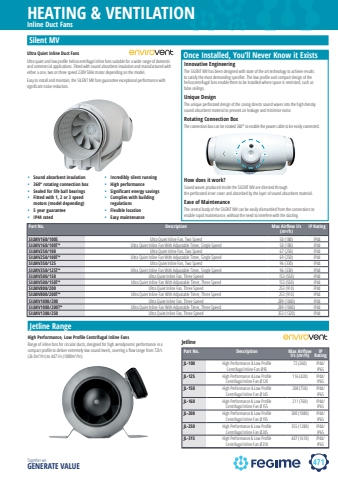

471HEATING & VENTILATIONTogether we GENERATE VALUESilent MVUltra Quiet Inline Duct Fans Ultra quiet and low profi le helicocentrifugal inline fans suitable for a wide range of domestic and commercial applications. Fitted with sound absorbent insulation and manufactured with either a one, two or three speed 230V 50Hz motor depending on the model. Easy to install and maintain, the SILENT MV fans guarantee exceptional performance with signifi cant noise reduction.Part No. Description Max Airfl ow l/s (m3/h)IP RatingSILMV160/100S Ultra Quiet Inline Fan, Two Speed 50 (180) IP44SILMV160/100T* Ultra Quiet Inline Fan With Adjustable Timer, Single Speed 50 (180) IP44SILMV250/100 Ultra Quiet Inline Fan, Two Speed 67 (250) IP44SILMV250/100T* Ultra Quiet Inline Fan With Adjustable Timer, Single Speed 69 (250) IP44SILMV350/125 Ultra Quiet Inline Fan, Two Speed 96 (330) IP44SILMV350/125T* Ultra Quiet Inline Fan With Adjustable Timer, Single Speed 96 (330) IP44SILMV500/150 Ultra Quiet Inline Fan, Three Speed 153 (550) IP44SILMV500/150T* Ultra Quiet Inline Fan With Adjustable Timer, Three Speed 153 (550) IP44SILMV800/200 Ultra Quiet Inline Fan, Three Speed 253 (910) IP44SILMV800/200T* Ultra Quiet Inline Fan With Adjustable Timer, Three Speed 253 (910) IP44SILMV1000/200 Ultra Quiet Inline Fan, Three Speed 289 (1040) IP44SILMV1000/200T* Ultra Quiet Inline Fan With Adjustable Timer, Three Speed 289 (1040) IP44SILMV1300/250 Ultra Quiet Inline Fan, Three Speed 353 (1320) IP44Once Installed, You%u2019ll Never Know it ExistsInline Duct Fans%u2022 Sound absorbent insulation%u2022 360%u00b0 rotating connection box%u2022 Sealed for life ball bearings%u2022 Fitted with 1, 2 or 3 speed motors (model depending)%u2022 5 year guarantee%u2022 IP44 rated%u2022 Incredibly silent running%u2022 High performance%u2022 Significant energy savings%u2022 Complies with building regulations%u2022 Flexible location%u2022 Easy maintenanceInnovative EngineeringThe SILENT MV has been designed with state of the art technology to achieve results to satisfy the most demanding specifi er. The low profi le and compact design of the helicocentrifugal fans enable them to be installed where space is restricted, such as false ceilings.Unique DesignThe unique perforated design of the casing directs sound waves into the high density sound absorbent material to prevent air leakage and minimise noise.Rotating Connection BoxThe connection box can be rotated 360%u00b0 to enable the power cable to be easily connected.How does it work?Sound waves produced inside the SILENT MV are directed through the perforated inner cover and absorbed by the layer of sound absorbent material.Ease of MaintenanceThe central body of the SILENT MV can be easily dismantled from the connections to enable rapid maintenance, without the need to interfere with the ducting.Jetline RangeHigh Performance, Low Profi le Centrifugal Inline FansRange of inline fans for circular ducts, designed for high aerodynamic performance in a compact profi le to deliver extremely low sound levels, covering a fl ow range from 72l/s (26 0m3/hr) to 447 l/s (1080m3/hr).Part No. Description Max Airfl ow l/s (m3/h)IP RatingJL-100 High Performance & Low Profi le Centrifugal Inline Fan %u00d89572 (260) IP44/IP65JL-125 High Performance & Low Profi le Centrifugal Inline Fan %u00d8120116 (420) IP44/IP65JL-150 High Performance & Low Profi le Centrifugal Inline Fan %u00d8145208 (750) IP44/IP65JL-160 High Performance & Low Profi le Centrifugal Inline Fan %u00d8155211 (760) IP44/IP65JL-200 High Performance & Low Profi le Centrifugal Inline Fan %u00d8195300 (1080) IP44/IP65JL-250 High Performance & Low Profi le Centrifugal Inline Fan %u00d8245355 (1280) IP44/IP65JL-315 High Performance & Low Profi le Centrifugal Inline Fan %u00d8310447 (1610) IP44/IP65Jetline
