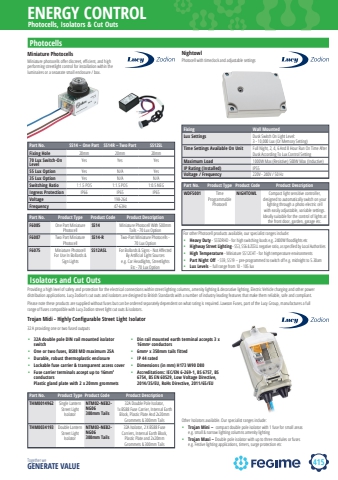

415ENERGY CONTROLTogether we GENERATE VALUEPhotocells, Isolators & Cut OutsPhotocellsFixing Wall MountedLux Settings Dusk Switch On Light Level: 3 - 10,000 Lux (Or Memory Setting)Time Settings Available On Unit Full Night, 2, 4, 6 And 8 Hour Run On Time After Dusk According To Lux Control SettingMaximum Load 1000W Max (Resistive) 500W Max (Inductive)IP Rating (Installed) IP55Voltage / Frequency 220V - 240V / 50 HzNightowlPart No. Product Type Product Code Product DescriptionWDF5001 Time Programmable PhotocellNIGHTOWL Compact light sensitive controller, designed to automatically switch on your lighting through a photo electric cell with easily adjustable, variable settings. Ideally suitable for the control of lights at the front door, garden, garage etc.For other Photocell products available, our specialist ranges include:%u2022 Heavy Duty - SS5DRHD - for high switching loads e.g. 2400W floodlights etc%u2022 Highway Street Lighting - SS3, SS6 & ZCELL negative ratio, as specified by Local Authorities%u2022 High Temperature - Miniature SS12CHT - for high temperature environments%u2022 Part Night Off - SS9, SS19 %u2013 pre-programmed to switch off e.g. midnight to 5.30am%u2022 Lux Levels %u2013 full range from 10 - 105 luxIsolators and Cut OutsProviding a high level of safety and protection for the electrical connections within street lighting columns, amenity lighting & decorative lighting, Electric Vehicle charging and other power distribution%u0009applications.%u0009Lucy%u0009Zodion%u2019s%u0009cut%u0009outs%u0009and%u0009isolators%u0009are%u0009designed%u0009to%u0009British%u0009Standards%u0009with%u0009a%u0009number%u0009of%u0009industry%u0009leading%u0009features%u0009that%u0009make%u0009them%u0009reliable,%u0009safe%u0009and%u0009compliant.Please%u0009note%u0009these%u0009products%u0009are%u0009supplied%u0009without%u0009fuses%u0009but%u0009can%u0009be%u0009ordered%u0009separately%u0009dependent%u0009on%u0009what%u0009rating%u0009is%u0009required.%u0009Lawson%u0009Fuses,%u0009part%u0009of%u0009the%u0009Lucy%u0009Group,%u0009manufactures%u0009a%u0009full%u0009range of fuses compatible with Lucy Zodion street light cut outs & isolators.%u2022 32A double pole DIN rail mounted isolator switch%u2022 One or two fuses, BS88 MD maximum 25A %u2022 Durable, robust thermoplastic enclosure%u2022 Lockable fuse carrier & transparent access cover%u2022 Fuse carrier terminals accept up to 16mm2conductorsPlastic gland plate with 2 x 20mm grommets%u2022 Din rail mounted earth terminal accepts 3 x 16mm2 conductors%u2022 6mm2 x 350mm tails fitted%u2022 IP 44 rated%u2022 Dimensions (in mm) H173 W90 D80%u2022 Accreditations: IEC/EN 6-269-1, BS 6757, BS 6754, BS EN 60529, Low Voltage Directive, 2014/35/EU, RoHs Directive, 2011/65/EUTrojan Midi - Highly Confi gurable Street Light Isolator32 A providing one or two fused outputsPart No. Product Type Product Code Product DescriptionTHM0014962 Single Lantern Street Light IsolatorNTM02-NEB2-NG06 300mm Tails32A Double Pole Isolator, 1x BS88 Fuse Carrier, Internal Earth Block, Plastic Plate And 2x20mm Grommets & 300mm TailsTHM0034193 Double Lantern Street Light IsolatorNTM03-NEB2-NG06300mm Tails32A Isolator, 2 X BS88 Fuse Carriers, Internal Earth Block, Plastic Plate and 2x20mm Grommets & 300mm TailsOther Isolators available. Our specialist ranges include:%u2022 Trojan Mini %u2013 compact double pole isolator with 1 fuse for small areas e.g. small & narrow lighting columns amenity lighting%u2022 Trojan Maxi %u2013 Double pole isolator with up to three modules or fuses e.g. Festive lighting applications, timers, surge protection etcPart No. SS14 %u2013 One Part SS14R %u2013 Two Part SS12SL Fixing Hole 20mm 20mm 20mm70 Lux Switch-On LevelYes Yes Yes55 Lux Option Yes N/A Yes35 Lux Option Yes N/A N/ASwitching Ratio 1:1.5 POS 1:1.5 POS 1:0.5 NEGIngress Protection IP66 IP65 IP65Voltage 198-264Frequency 47-63HzMiniature PhotocellsMiniature%u0009photocells%u0009off%u0009er%u0009discreet,%u0009effi%u0009%u0009cient,%u0009and%u0009high%u0009performing streetlight control for installation within the luminaires or a separate small enclosure / box.Part No. Product Type Product Code Product DescriptionF6085 One Part Miniature Photocell SS14 Miniature Photocell With 500mm Tails - 70 Lux OptionF6087 Two Part Miniature Photocell SS14-R Two-Part Miniature Photocells - 70 Lux OptionF6075 Miniature Photocell For Use In Bollards & Sign LightsSS12ASL For%u0009Bollards%u0009&%u0009Signs%u0009-%u0009Not%u0009Aff%u0009ected%u0009By%u0009Artifi%u0009cial%u0009Light%u0009Sources%u0009e.g. Car Headlights, Streetlights Etc - 70 Lux OptionPhotocell with timeclock and adjustable settings
