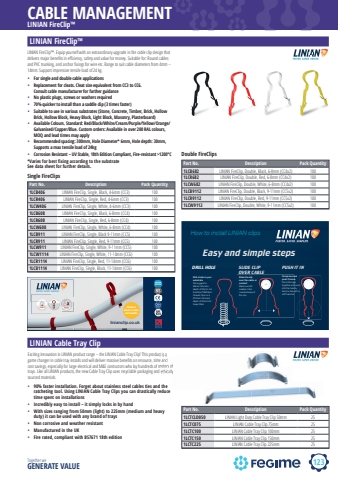

123 Together we GENERATE VALUECABLE MANAGEMENTlinianLINIAN FireClip%u2122LINIAN FireClip%u2122LINIAN Cable Tray ClipPart No. Description Pack Quantity1LCB406 LINIAN FireClip, Single, Black, 4-6mm (CC3) 1001LCR406 LINIAN FireClip, Single, Red, 4-6mm (CC3) 1001LCW406 LINIAN FireClip, Single, White, 4-6mm (CC3) 1001LCB608 LINIAN FireClip, Single, Black, 6-8mm (CC4) 1001LCR608 LINIAN FireClip, Single, Red, 6-8mm (CC4) 1001LCW608 LINIAN FireClip, Single, White, 6-8mm (CC4) 1001LCB911 LINIAN FireClip, Single, Black 9-11mm (CC5) 1001LCR911 LINIAN FireClip, Single, Red, 9-11mm (CC5) 1001LCW911 LINIAN FireClip, Single, White, 9-11mm (CC5) 1001LCW1114 LINIAN FireClip, Single, White, 11-14mm (CC6) 1001LCR1114 LINIAN FireClip, Single, Red, 11-14mm (CC6) 1001LCB1114 LINIAN FireClip, Single, Black, 11-14mm (CC6) 100LINIAN FireClip%u2122. Equip yourself with an extraordinary upgrade in fi re cable clip design that delivers major benefi ts in effi ciency, safety and value for money. Suitable for: Round cables and PVC trunking, and anchor fi xings for wire etc. Range to suit cable diameters from 4mm %u2013 14mm. Support impressive tensile load of 24 kg.%u2022 For single and double cable applications%u2022 Replacement for cleats. Cleat size equivalent from CC3 to CC6. Consult cable manufacturer for further guidance%u2022 No plastic plugs, screws or washers required%u2022 70% quicker to install than a saddle clip (3 times faster)%u2022 Suitable to use in various substrates (Stone, Concrete, Timber, Brick, Hollow Brick, Hollow Block, Heavy Block, Light Block, Masonry, Plasterboard) %u2022 Available Colours. Standard: Red/Black/White/Cream/Purple/Yellow/Orange/Galvanised/Copper/Blue. Custom orders: Available in over 200 RAL colours, MOQ and lead times may apply%u2022 Recommended spacing: 300mm, Hole Diameter* 6mm, Hole depth: 30mm, Supports a max tensile load of 24kg %u2022 Corrosion Resistant %u2013 UV Stable, 18th Edition Compliant, Fire-resistant >1200%u00b0C*Varies for best fixing according to the substrate See data sheet for further details. Part No. Description Pack Quantity1LCB682 LINIAN FireClip, Double, Black, 6-8mm (CC4x2) 1001LCR682 LINIAN FireClip, Double, Red, 6-8mm (CC4x2) 1001LCW682 LINIAN FireClip, Double, White, 6-8mm (CC4x2) 1001LCB9112 LINIAN FireClip, Double, Black, 9-11mm (CC5x2) 1001LCR9112 LINIAN FireClip, Double, Red, 9-11mm (CC5x2) 1001LCW9112 LINIAN FireClip, Double, White, 9-11mm (CC5x2) 100Part No. Description Pack Quantity1LCTCLD050 LINIAN Light Duty Cable Tray Clip 50mm 251LCTC075 LINIAN Cable Tray Clip 75mm 251LCTC100 LINIAN Cable Tray Clip 100mm 251LCTC150 LINIAN Cable Tray Clip 150mm 251LCTC225 LINIAN Cable Tray Clip 225mm 25Single FireClipsDouble FireClipsTMlinianclip.co.ukReplacesCleats, P-Clipsand SaddlesEel ctricCable orConduitEasy and simple stepsDrill a hole in yoursubstrateWe suggest a%u00d86mm hole at adepth of 30mm. forFireClips/T&EClips/Coaxial Clips or a%u00d810mm hole at adepth of 40mm forSuperClips.Slide the clipover the cable orconduitMake sure it'sseated in therounded area ofthe clip.Compress andpush it homePinch the legstogether and pushinto the hole byhand or tap with asoft hammer.Eel ctricCable orConduitDRILL HOLE SLIDE CLIP PUSH IT IN OVER CABLEHow to install LINIAN clipsExciting innovation in LINIAN product range %u2013 the LINIAN Cable Tray Clip! This product is a game changer in cable tray installs and will deliver massive benefits on resource, time and cost savings, especially for large electrical and M&E contractors who lay hundreds of meters of trays. Like all LINIAN products, the new Cable Tray Clip uses recyclable packaging and ethically sourced materials.%u2022 90% faster installation. Forget about stainless steel cables ties and the ratcheting tool. Using LINIAN Cable Tray Clips you can drastically reduce time spent on installations %u2022 Incredibly easy to install %u2013 it simply locks in by hand %u2022 With sizes ranging from 50mm (light) to 225mm (medium and heavy duty) it can be used with any brand of trays %u2022 Non corrosive and weather resistant %u2022 Manufactured in the UK %u2022 Fire rated, compliant with BS7671 18th editiontrays. Like all LINIAN products, the new Cable Tray Clip uses recyclable packaging and ethically Exciting innovation in LINIAN product range %u2013 the LINIAN Cable Tray Clip! This product is a game changer in cable tray installs and will deliver massive benefits on resource, time and cost savings, especially for large electrical and M&E contractors who lay hundreds of meters of
